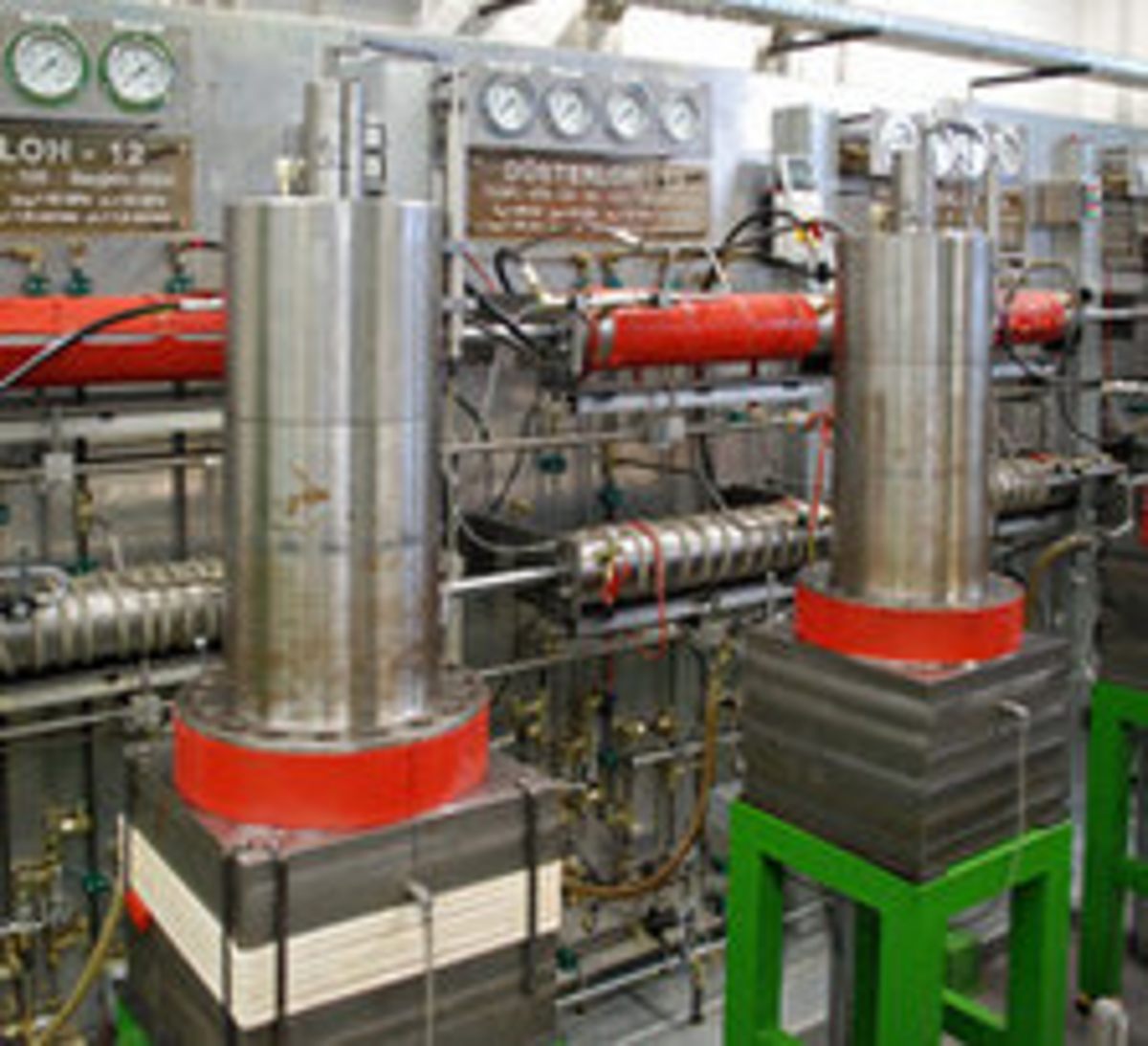

Triaxial Compression/Extension testing devices Dü12 - Dü15

kind of experiments:	TCc, TEc, TCH
axial force:	bis 400 kN, hydraulic
confining pressure:	0-35 MPa, hydraulic
temperature:	20-70 °C, automatically controlled
examined body:	diameter 60-90 mm, length 180 mm
measurement recording:	computer controlled, MGC+
measurement recorder:	1 x displacement transducer W20TS/ W50TS 2 x pressure sensor P3MB, 50 MPa 1 x Pt100 1 x dilatancy measurement 1 x ultrasonic wave velocity measurement
